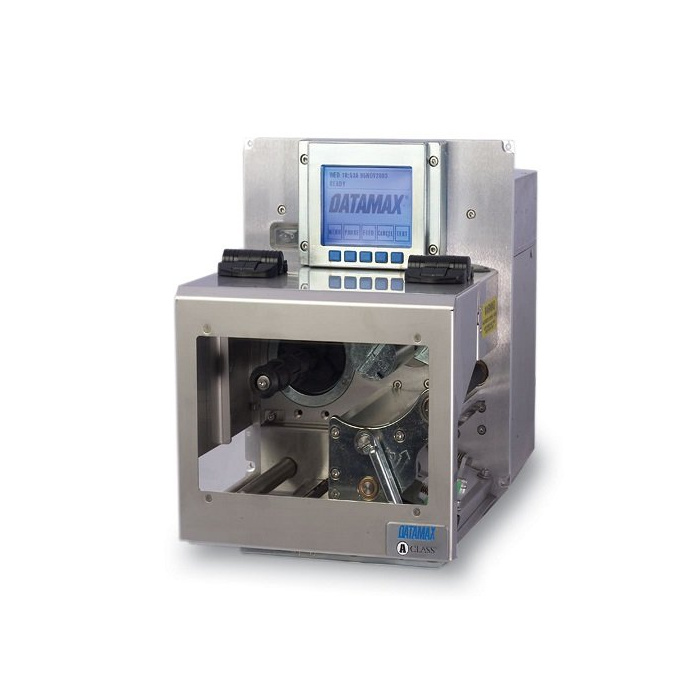

Honeywell A-Class Mark II Industrial Multi-shift Label Print Engine

The A-Class Mark II family of advanced print engines is designed for high-demand, multi-shift print-and-apply label application where fast throughput and proven reliability are a must. Innovative features include a modular design for enhanced serviceability, coated-side-in or coated-side-out thermal-transfer ribbon assembly, and more. When your demanding print-and-apply label applications require more features than standard print engines offer, it’s time to move up to the A-Class Mark II family. These advanced print engines are designed for high-demand, multi-shift applications that require fast throughput and proven reliability.

A-Class Mark II printers use industry-recognized firmware architecture with maximum connectivity options for industry-standard communications interfaces. They support the industry-recommended OEM 5 bolt mounting connection for seamless integration into your system. And PL-Z (Zebra) printer language emulation allows you to seamlessly integrate the A-Class into existing solutions without changing label formats.

Specifications at a glance :

Printhead : Direct thermal; optional thermal transfer
Right-hand or left-hand models
Printer length range: 6 mm to 2,539.8 mm (0.25 in to 100 in)
Maximum print width: 105.66 mm (4.16 in) or 162.56 mm (6.4 in)
Print speed :

A-4212; 304 mms (12 ips), 8 mmps (203 dpi)
A-4310; 254 mms (10 ips), 12 mmps (300 dpi)
A-4408; 203 mms (8 ips), 16 mmps (406 dpi)
A-4606; 152 mms (6 ips), 24 mmps (600 dpi)
A-6212; 304 mms (12 ips), 8 mmps (203 dpi)
A-6310; 254 mms (10 ips), 12 mmps (300 dpi)

Communication : Serial RS232, parallel bi-directional, Ethernet-wired LAN 10/100, USB 2.0 compatible, GPIO applicator card
Optional wireless 802.11b/g, USB-host, SDIO memory slot
